Digital Orbital Shaker 0-500 rpm

$702.00 USD

Sale Sold out

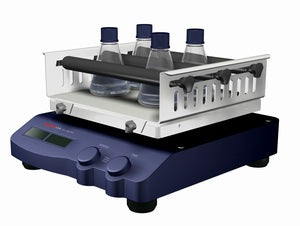

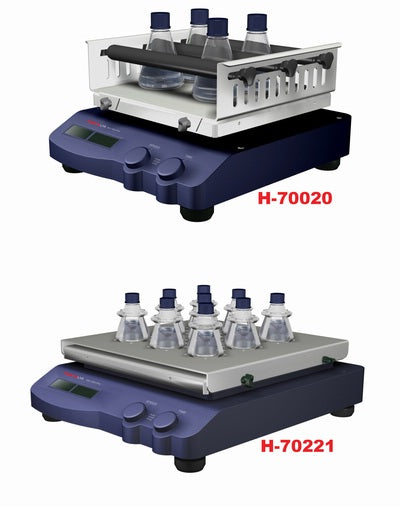

Digital Orbital Shaker -- H-70020 & H-70221

ISO9001/13485 Certified

H-70020 & H-70221 Digital Orbital Shaker is a powerful variable speed shaker which provides efficient orbital motion. Speed and time are under microprocessor control. The shaker can be applicable in different laboratories: in microbiology, chemistry, immunology, biochemistry, and molecular biology.

Main Data Description

Voltage [VAC]	85-265
Frequency (Hz]	50/60
Power [W]	25
Shaking movement	Orbital
Orbital diameter [mm]	10
Max. shaking weight (with attachment) (kg)	7.5
Motor type	Exterior rotor brushless motor
Motor rating input [W]	28
Motor rating output [W]	15
Permissible ON time [%]	100
Speed range [rpm]	0-500
Speed disptay	LCD
Timer	Yes
Timer display	LCD
Time setting range [min]	1-1199
Run type	Time / Continuous operation
Table oscillation braking device	Yes
Dimensions [DWH mm]	430X360X106
Weight [kg]	8.8
Permissible ambient temperature [V]	5-40
Permissible relative humidity	80%
Protection class ace toDIN EN60529	IP21
RS232 Interface	Yes

Features
1.Compact, orbital shaker with ideal swivel motion, for a maximum shaking weight of 7.5kg
2.LCD display for speed and time adjustment, makes it possible to read the speed, timer function and operating mode.
3.Wide range of attachment combinations makes it possible to use almost all shapes and sizes of vessels.
4.Electronic adjustment of speed and timer.
5.Electronic time switching clock: time or continuous operation mode.
6.Outer rotor brushless motor; Over speed detection and protection.
7.PC control via RS232 interface, software is available to control and document all measuring values via PC. Parameter can be set to carry out safety monitoring

Platforms for H-70020 & H-70221
Main body & Platforms

H-70020	SK-O180-Pro Orbital Digital Shaker (2Kg), Orbital	$602
H-70221	SK-O330-Pro Orbital Digital Shaker (7.5 Kg), Orbital	$669
H-702210	Linear/Orbital Shaker Fixing Clip for round flasks volume 25 ml	$39.00
H-702220	Linear/Orbital Shaker Fixing Clip for round flasks volume 50 ml	$43.50
H-702230	Linear/Orbital Shaker Fixing Clip for round flasks volume 100 ml	$46.50
H-702240	Linear/Orbital Shaker Fixing Clip for round flasks volume 200/250 ml	$58.50
H-702250	Linear/Orbital Shaker Fixing Clip for round flasks volume 500 ml	$67.50
H-702100	Universal Attachment for 2KG Linear/Orbital Shaker for use with various types of flasks/vessels with universal variable position (4) clamping bars.	$199.50
H-702200	Fixing Clip Platform Attachment for 2KG Linear/Orbital Shaker for round flasks, Erlenmeyer flasks and bottles. Please order fixing clips separately.	$199.50
H-703100	Universal Attachment for 7.5KG Linear/Orbital Shaker for use with various types of flasks/vessels with universal variable position (6) clamping bars.	$322.50
H-703200	Fixing Clip Platform Attachment for 7.5KG Linear/Orbital Shaker for round flasks, Erlenmeyer flasks and bottles. Please order fixing clips separately.	$190.50

H-70020	SK-O180-Pro Orbital Digital Shaker (2Kg), Orbital	$702
H-70221	SK-O330-Pro Orbital Digital Shaker (7.5 Kg), Orbital	$769
H-702210	Linear/Orbital Shaker Fixing Clip for round flasks volume 25 ml	$40
H-702220	Linear/Orbital Shaker Fixing Clip for round flasks volume 50 ml	$50
H-702230	Linear/Orbital Shaker Fixing Clip for round flasks volume 100 ml	$50
H-702240	Linear/Orbital Shaker Fixing Clip for round flasks volume 200/250 ml	$60
H-702250	Linear/Orbital Shaker Fixing Clip for round flasks volume 500 ml	$70
H-702100	Universal Attachment for 2KG Linear/Orbital Shaker for use with various types of flasks/vessels with universal variable position (4) clamping bars.	$200
H-702200	Fixing Clip Platform Attachment for 2KG Linear/Orbital Shaker for round flasks, Erlenmeyer flasks and bottles. Please order fixing clips separately.	$200
H-703100	Universal Attachment for 7.5KG Linear/Orbital Shaker for use with various types of flasks/vessels with universal variable position (6) clamping bars.	$325
H-703200	Fixing Clip Platform Attachment for 7.5KG Linear/Orbital Shaker for round flasks, Erlenmeyer flasks and bottles. Please order fixing clips separately.	$200
