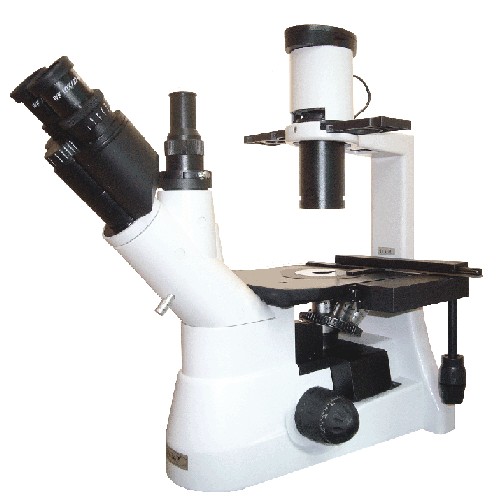

PB-403I Inverted Biological Microscope, Compensation free Trinocular Head. Inclined at 45°

Viewing head

Compensation free Trinocular Head. Inclined at 45°

Interpupillary Distance

50mm -75mm

Eyepiece

High eye point WF10X (22mm), 1 pair
Centering telescope, 1 piece

Objective

Infinity Plan Objective: ∞ 4X/0.1 W.D.=25mm
Infinity Plan Objective: ∞ 10X/0.25 W.D.= 16mm
Infinity Long W.D. Plan Objective: ∞ 20X/0.4, Phase Contrast, W.D=10mm
Infinity Long W.D. Plan Objective: ∞ 40X/0.6 W.D=5.4mm

Stage

Double layers mechanical stage
Stage size: 242mm × 172mm

Center ring stage: 110mm
Moving range: 115mm × 75mm

Condenser

N.A 0.3 Abbe condenser, W.D=75mm

Focusing

Coaxial coarse & fine focusing adjustment with rack and pinion mechanism
Fine focusing scale Value 0.002mm

Filter

Blue, green, and yellow ground glass

Phase contrast sliding plate

Center of phase contrast ring plate adjustable

Illumination

Halogen Bulb 12V30W adjustable brightness

Option

Infinity Long W.D. Plan Objective: ∞ 40X, Phase ContrastEyepiece

WF10X with cross graduation of 0.1mm scale
